n Advanced HMI operation, PLC control;

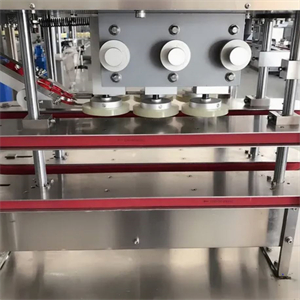

n Automatic cap stamping and cap hanging; afterwards, bottles are calibrated before being fed to the capping mechanism by the bottle-clamping belt. Bottle caps will be pressed tighter and tighter thanks to the capping belt design.

n Capping speed is fast and conformance rate is high. Sealing performance is good after capping.

n The surface is made of 304 stainless steel.

Scope of application:

n It applies to capping and sealing of bottles for soy source, vinegar and vegetable oil.

Item

XL-120

 Cap diameter

Φ45-160mm

瓶体直径 Bottle diameter

Φ50-110mm

 Bottle height

60-300mm

Screwing speed

≤6000桶/小时barrels/min

 Power

AC220V 50/60Hz 1.1KW

Weight

650㎏

Pressure range

0.4-0.6Mpa

Host dimension

2000×930×2100mm
