n Advanced HMI operating system, PLC control;

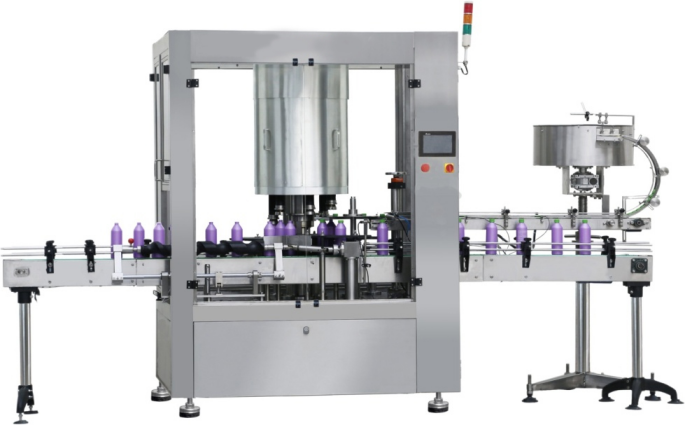

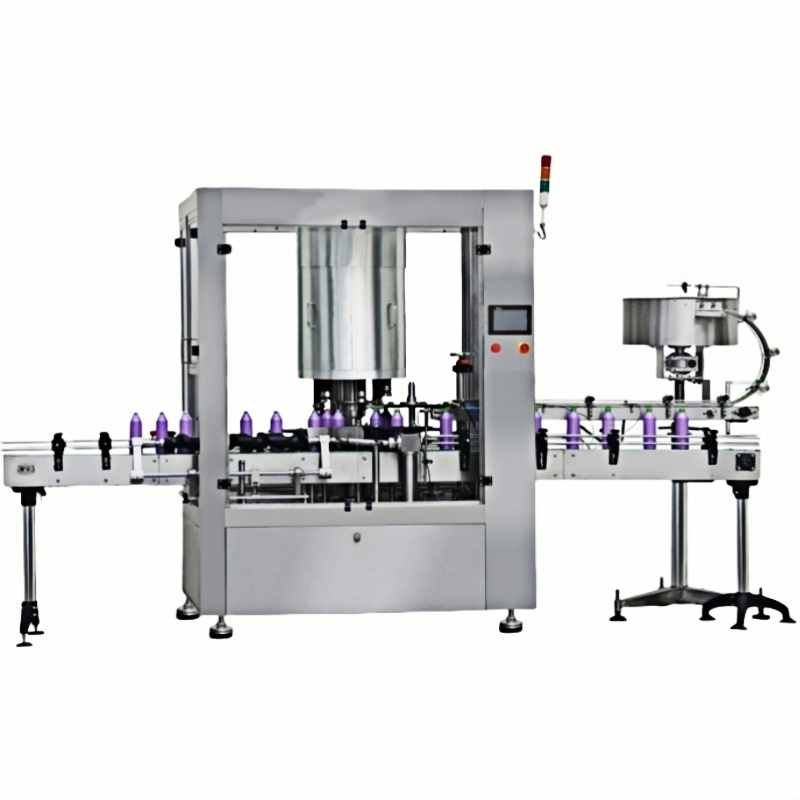

n The machine is designed with 6 manipulators for automatic bottle feeding, cap unscrambling, clinching and screwing.

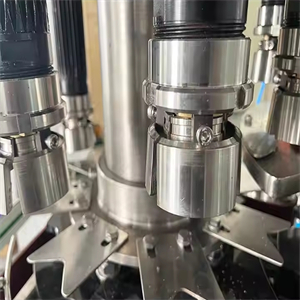

n Belt-pull rise mode is adopted, which will not damage the bottle body. Pneumatic mode is adopted for fastening the cap tight; the clutch is set; fastened caps can automatically slide without damage.

n Cap screwing speed is fast and conforming rate is high.

n The appearance structure is made of 304 stainless steel.

Scope of application:

n It applies to cap screwing and sealing of thread caps for food, pharmacy, daily use chemicals, pesticide and chemicals.

n It is suitable for screwing caps in poor coordination with the bottle opening.

Item

XL-6

 Cap diameter

Φ35-55mm

 Bottle diameter

Φ45-100mm

Bottle height

80-280mm

Screwing speed

≤6000桶/小时barrels/h

 Power

AC380V 50/60Hz 3KW

Weight

1000㎏

Pressure range

0.4-0.6Mpa

Host dimension

2000×1300×2400mm
