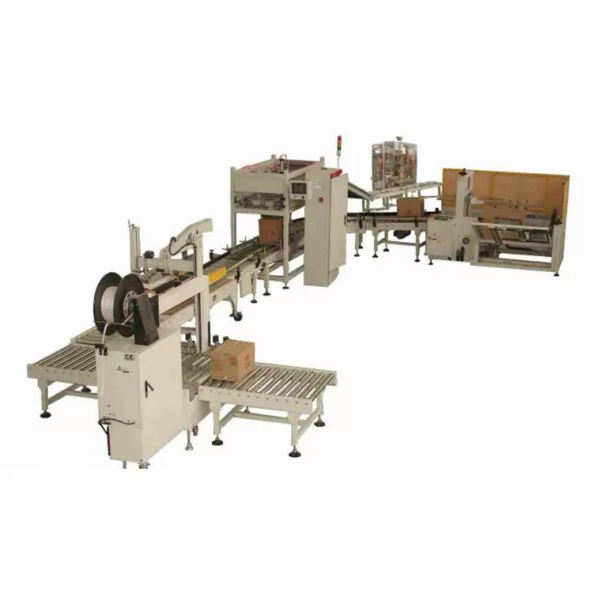

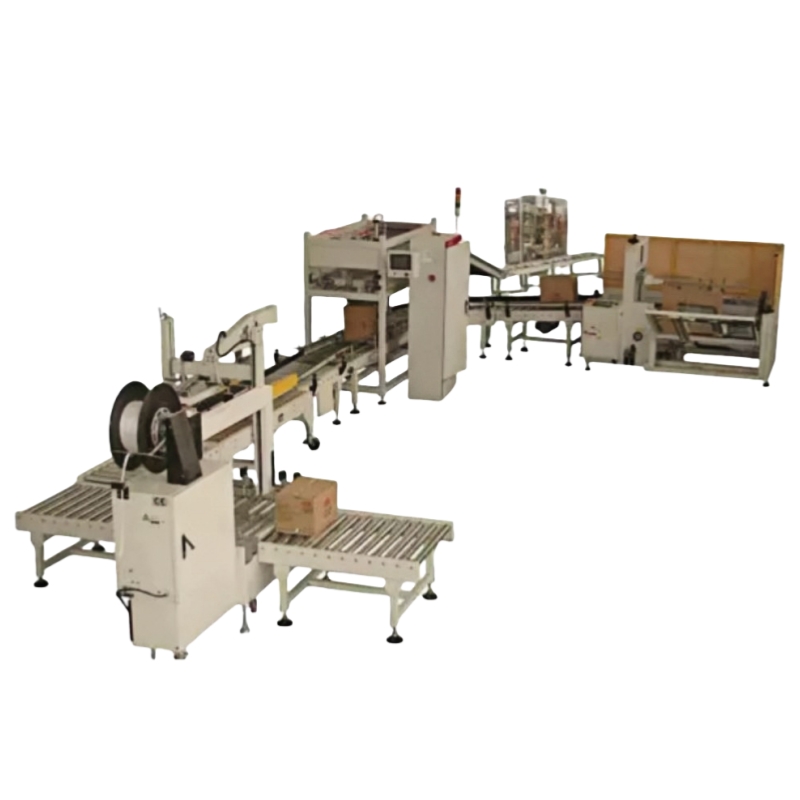

Automatic Bottle Can Pet Bottle Linear Carton Box Case Packing

1.2. Equipment Specification

Unpacking method: vertical molding Power supply: 220 V, 50 Hz Power: 400W Air pressure: 0.6MPa Air consumption: 200L / min Machine dimensions: l2500mm * w2080mm * h1492mm Applicable carton specification: l200-450mm * w150-400mm * h120-350mm Applicable tape: 48 / 60 / 75mm * 900 yards / L OPP (optional) Unpacking speed: 9-12 cartons / min (depending on carton size) Table height: 625mm Environmental conditions: humidity ≤ 90%, temperature 0-40 ℃

1.3. Equipment features

① The equipment is designed and manufactured in accordance with the requirements of production line process and plane layout, with beautiful appearance and good manufacturing process; ② Low power and water consumption, simple and convenient operation, adjustment and maintenance; ③ No carton alarm function; ④ Storage mechanism: it can place about 50 unformed cartons at a time (depending on the thickness of cartons) and replenish them at any time

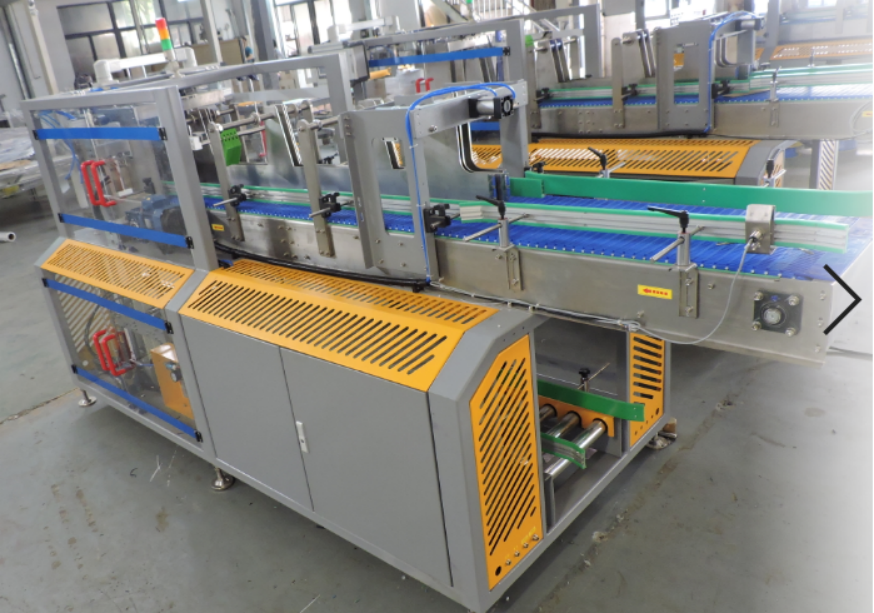

2. Full-automatic Dropping Packing Machine System (It is composed of upper whole row conveyor, main packing machine, lower carton conveyor and electric control system.)

2.2. Machine Specification

Packing method: drop packing, one box at a time; Power supply: three phase 380V, 50 Hz Power: 4kw Air pressure: 0.6MPa Air consumption: 450nl / min Packing speed: 8-10 cases / min Body material: SUS304 stainless steel square tube welding is adopted for the main frame, and the surface is treated with wire drawing;

2.3. Equipment features

① Automatic packing machine is a kind of intelligent full-automatic packing machine. After loading, it will automatically sense and discharge the cartons to the sealing machine. ② This machine adopts PLC + touch screen control. It is equipped with a safety device for alarm and shutdown of bottle shortage and no packing without bottle. This assembly line is convenient to operate, manage, reduce production personnel and labor intensity. ③ According to the packing requirements, it can arrange the products automatically. ④ The design is novel and the structure is compact. ⑤ Wide range of application, can be applied to a variety of products packing. ⑥ It is especially suitable to be used with packing line, and it is easy to move. ⑦ PLC program control, simple operation and stable action.

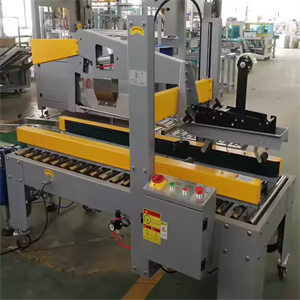

3. Automatic Box Sealing Machine
